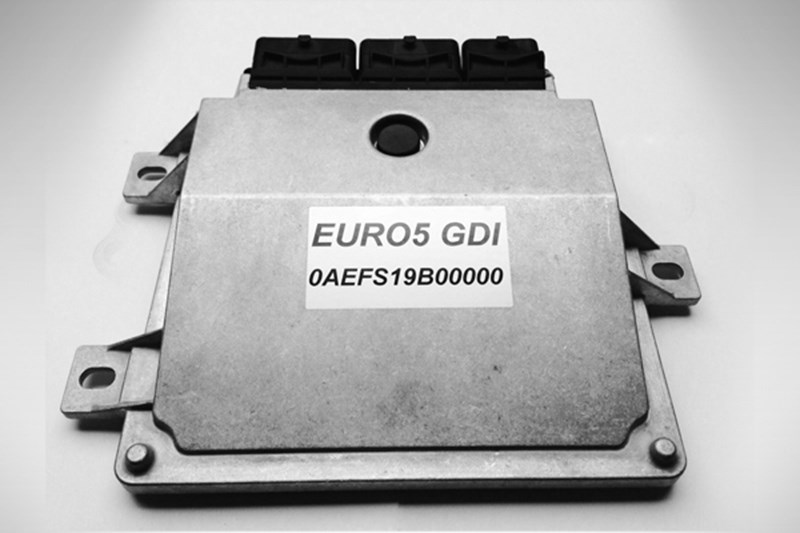

Euro 5 for Direct Injection

Variations

P/N# Model Crank And cam Trigger Price in USD
EFS19B Euro 5 ECU for direct injection engines Selectable inputs for both VR and Hall effect sensors 2900

Euro 5 for Direct Injection

Dual fuel system, direct injection and port injection in one module.
Management system for engines having up to 4 cylinders
Dual drive by wire with individual control
Variable camshaft timing for inlet and exhaust camshafts
Paddle shift with closed loop control
3 x CAN 2.0 ports
Built-in high-speed 128 Mb data logger
Automatic closed loop fuel mapping
Traction control
ASAP3 Ethernet and serial control for automated engine testing and calibration
Specialized software for automotive development

System overview

  • PowerPC microprocessor
  • 4 cylinder fully sequential fuel injection
  • Dual-stage fuel injection for stand off and Direct fuel injection
  • Ignition output handles both logic and inductive, regular and COP coils.
  • Dual drive by wire throttle PID control
  • On-board data logger with high speed sampling rate (200hz)
  • Automatic fuel mapping
  • Fuel mass control with DI/PFI split
  • 3 DI injections pr. stroke with individual angle and time delay
  • Closed-loop lambda control
  • Closed-loop boost control
  • Closed-loop traction control
  • Closed-loop paddle shift control
  • Closed-loop variable camshaft control (VCT, VVT, VANOS etc.)
  • Closed-loop direct injection fuel pump control (Bosch and Hitachi)
  • Closed-loop water pump control
  • Closed-loop pit lane speed control
  • Closed-loop idle control (ETB, stepper motor, ISC valve and ignition)
  • 5 selectable maps (all features in the ECU can be switch while driving)

Inputs

  • 19 user-defined analog inputs (0-5v)
  • 19 user-defined digital inputs
    • Digital inputs can be assigned to SENT technology sensors
  • 16 user defined CAN inputs (analog and digital switch)
  • Dual trigger inputs system with both (Hall/VR) for crank and cam sensors
    • User-defined (Crank, Cam, wheel-speed and turbocharger speed)
  • 2 knock sensors (4 cylinder individual or global knock retard)
  • 1 built-in lambda controller (individual lambda control)
  • 1 built-in barometric pressure sensor

Outputs

  • 8 fuel injector drivers
    • 4 DI (direct injection)
    • 4 PFI (port injection)
  • 4 inductive and 4 logic ignition drivers
  • 13 multi purpose PWM and switch outputs
  • 1 lambda sensor heater
  • 2 full H-bridge outputs
    • Drive-by-wire throttle body control
    • Electronic waste gate control
    • Electronic EGR control
  • 4 independent 5.0v sensor power supply

Communications

  • Ethernet
  • 3 CAN 2.0B interfaces
  • Multiple pre-programmed and user defined CAN export and import
    • FIA RX datalogger
    • Bosch ABS data import
    • General data import and export
    • VW Dash protocol (500Kbit)
  • 16 CAN identifiers available for export
  • 4 CAN identifiers available for import

Special features

  • Dual electronic waste gate control
  • 5 engine maps (map/calibration switching while running)
  • 1 lambda sensors for individual closed loop PID cylinder trim
  • Special engine trigger patterns including several for motorcycle engines
  • Control strategy for paddle shift and air compressor
  • Control strategy for sequential closed loop gear change
  • Gear depended traction control with target slip maps and PID control
  • Pit lane, launch and external adjustable manual limiter
  • Programmable firing order
  • Comprehensive CAN features
  • Launch control (including spark advanced and RPM vs time)
  • Special version available with fully encrypted software
  • Programmable RPM and launch cut patterns
  • ASAP3 (for automated development work in the automotive industry)
  • Drag race features with time control
    • Electronic throttle body offset
    • Spark advance/retard offset
    • Boost target offset

General

  • Dimensions (very small and light)
    • Weight 825g (29 oz.)
    • 177 x 165 x 36mm  (7" x 6 1/2" x 1 1/2")
    • All aluminum and high-end vibration stable SMD PCB
  • 3 automotive Molex connectors with high pin density (128 in total)

Conditions for usage

  • Temperature range -40 to 125 Celsius (-40 to 257 Fahrenheit)
  • Power supply 7-16v
  • Splash-proof

Product information

Description Downloads
OBR Euro 5 product information
OBR Euro 5.pdf ( pdf 8.17 MB )


Pinout

Description Downloads
Euro 5 Pinout PDF
Euro 5 Pinout in .PDF format
Euro 5 pinout.pdf ( pdf 0.06 MB )
