MAP & TMAP Sensors MAP & TMAP Sensors
MAP & TMAP Sensors thumb MAP & TMAP Sensors thumb

Variations

P/N# Model Description Price in USD
OB1780 TMAP 1 bar Temperature and MAP absolute pressure sensor, 1 bar absolute pressere range 60
OB1784 TMAP 3 bar Temperature and MAP absolute pressure sensor, 3 bar absolute pressere range 60
OB2260 Pressure 30 psi 2 bar (30 psi) absolute pressure range, stainless steel housing 1/8 NPT 150
OB2260 Pressure 60 psi 4 bar (60 psi) absolute pressure range, stainless steel housing 1/8 NPT 150

MAP & TMAP Sensors

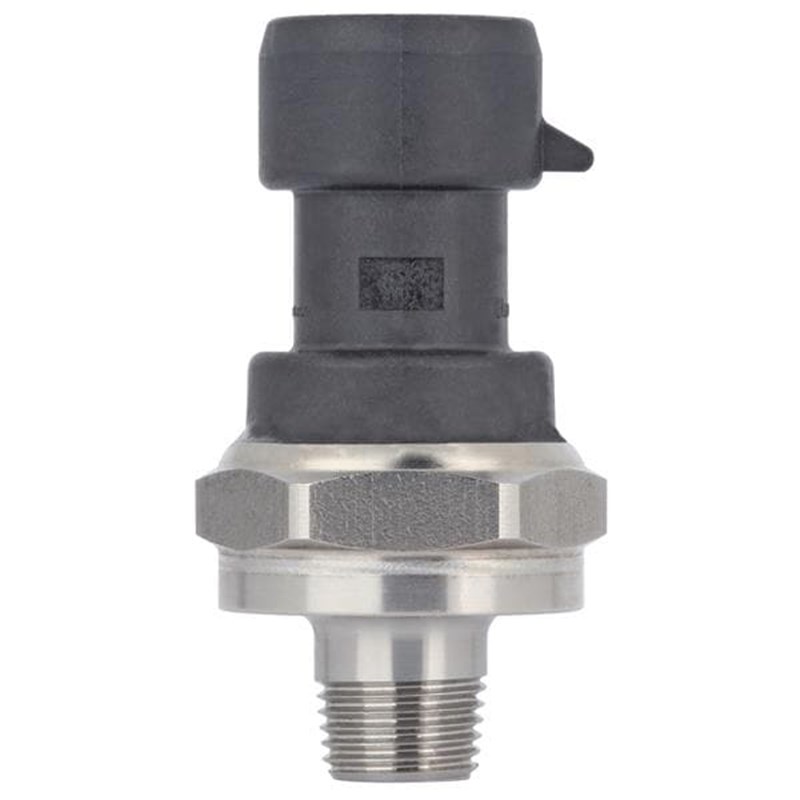

Stainless steel absolute air pressure sensors are available in different pressure ranges.

0.5..4.5 volt analogue output.
Accuracy 0.5% FS.
5 volt excitation voltage.
0 OF to +275 OF (-15 OC to 135 OC) operating temperature.
1/8-27 NPT pressure connection.
Weight 2.4 oz (68 gr).

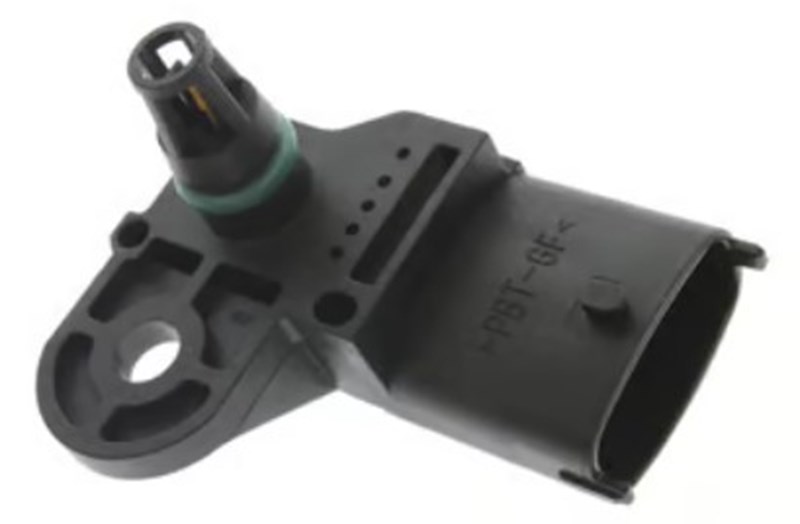

Automotive TMAP sensors are available in 1 bar and 3 bar absolute pressure ranges.

0.5..4.5 volt analogue output.
Accuracy 0.5% FS.
5 volt excitation voltage.
0 OF to +275 OF (-15 OC to 135 OC) operating temperature.
